SARbox

Full SARbox Review for DJI Phantom 4: How to Install, change settings and connect different add-ons.

DES

Description:

SARbox - Smart box converting light to channels for rc vehicles.

This is a cool little box designed for DJI Phantom 3 & 4, but can work with any rc vehicle or even on a wall and you can activate it ONLY by light!
on the Phantom 3 & 4 - you can control the front led lights of the drone from your remote control. this SARbox converts that light into a channel or a power switch that can be used for many purposes in search & rescue mission, drone fishing and also for general filming where you need more extra lights or an extra fpv.



* The device has 2 power inputs! you can connect any battery from 3.7v-12v. Using a strong battery will ONLY effect the 7.2v-12v light output - Servo output will only receive a maximum of 5v!

* The device has 2 Lights outputs. 1=3.7v-5v, 2=7.2v to 12v

* The device has 1 Servo output (you can split it with a "y" cable)

* SARbox can work under maximum of 12v / 1.5A but you you can connect “DAL 20A 30A Electronic Swith LED Light Switch PWM 3.7-28V



Things you can connect using a 3.7v-5v Battery:

360 degrees rotating Servo

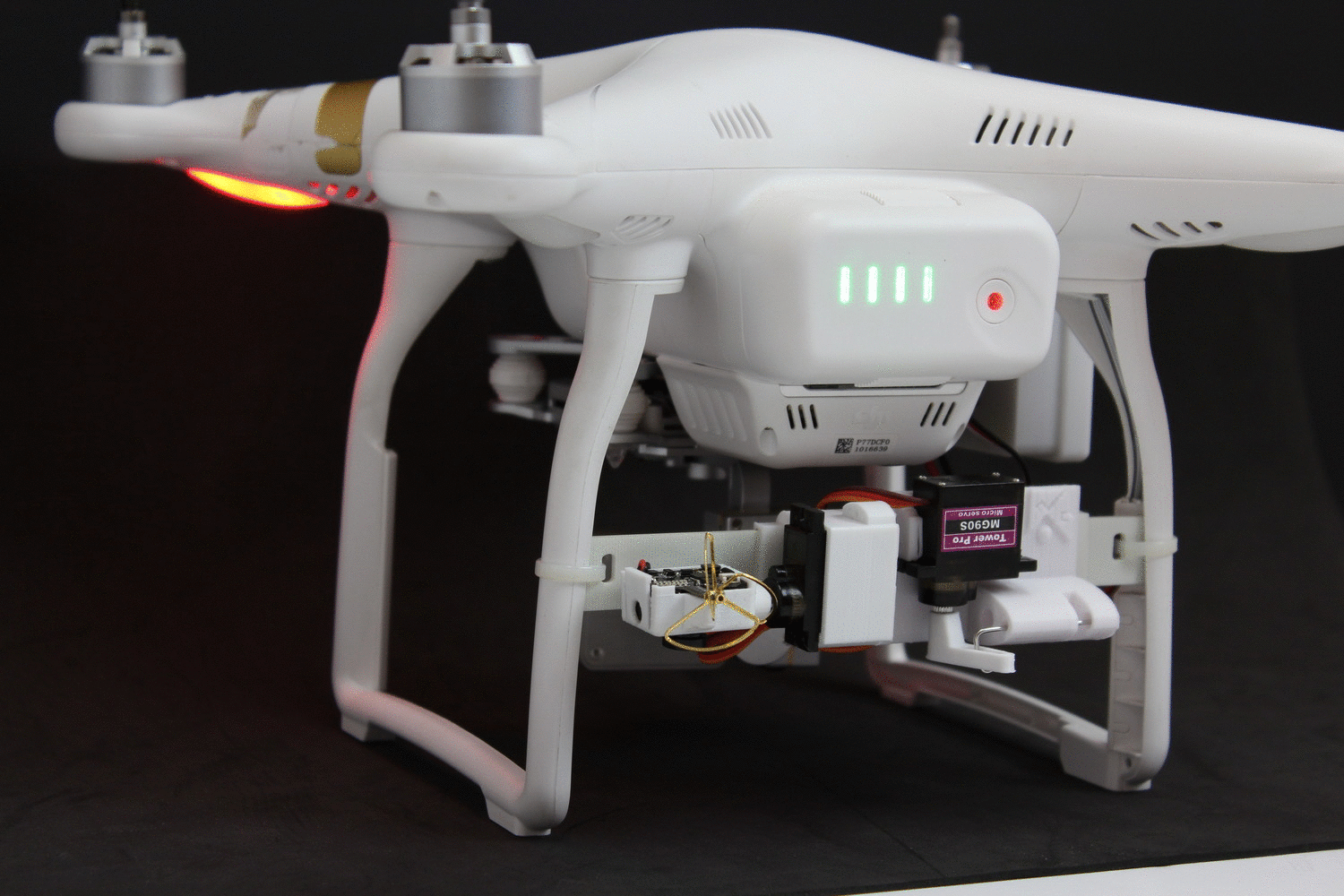

FPV Camera tilt mechanism+power to the camera
Payload release mechanism
Retractable landing skids
Laser tilt mechanism+Laser module



Things you can connect using a 7.2v-12v Battery:

Strong external led lights
360 degrees rotating Servo
FPV Camera tilt mechanism+power to the camera
Payload release mechanism
Retractable landing skids
Laser tilt mechanism+Laser module
